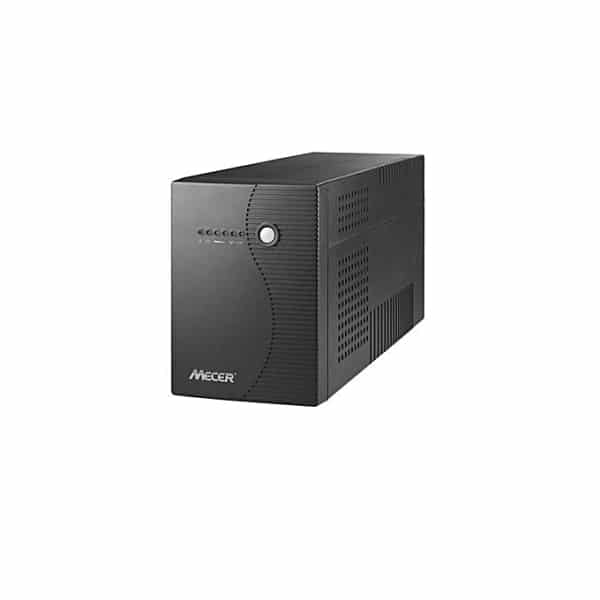

Mecer 650VA Line Interactive UPS (ME-650-VU) Proftech

Mecer 650VA Line Interactive UPS (ME-650-VU), (with AVR,Monitoring Software + Cable & Built-in Surge Protection) – Black

An uninterruptible power supply, also uninterruptible power source, UPS or battery/flywheel backup, is an electrical apparatus that provides emergency power to a load when the input power source, typically mains power, fails.

Mecer Uninterruptible Power Supply (UPS) 650va  features;

• 650VA Line interactive UPS
• Microprocessor control guarantees high reliabilty
• Boost and Buck AVR fo voltage stabilization
• Auto restart while AC is recovering
• Simulated sine wave
• Off-mode charging
• Cold start function
• Overload,discharge and overcharge protection
• USB Communication port and RJ-11/RJ-45 protection
• Supports Windows and Mac

specification

Specifications for the product series
Product Code	ME-650-VU
MODEL	ME-650-VU
CAPACITY	650 VA / 360 W
INPUT
Voltage	110/120 VAC or 220/230/240 VAC
Voltage Range	81-145 VAC / 162-290 VAC
Frequency Range	60/50 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	±10%
Frequency Range (Batt. Mode)	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)	Simulated Sine Wave
BATTERY
Battery Type & Number	12 V/7 AH x 1
Typical Recharge Time	4-6 hours recover to 90% capacity
INDICATORS
AC Mode
Green lighting	The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level
Battery Mode
Yellow flashing	The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level
Fault
Red lighting	Red LED lighting
PROTECTION
Full Protection	Overload, discharge, and overcharge protection
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H(mm)	287 x 100 x 142
Net Weight (kgs)	4.25
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 40dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC
