Name: Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery
SKU: 21718
Availability: InStock

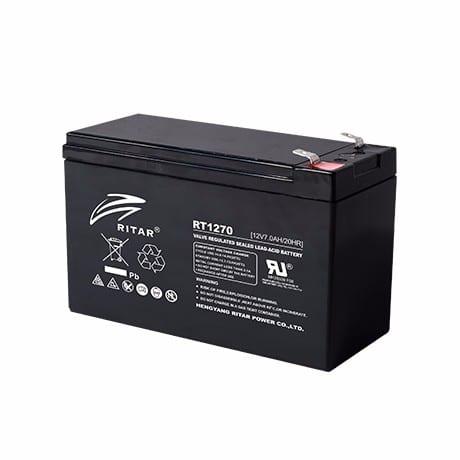

Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery delivers dependable backup power through advanced valve-regulated lead-acid (VRLA) technology that provides maintenance-free operation and exceptional reliability. This professional-grade battery offers consistent performance across demanding applications while maintaining superior cycle life and charge retention characteristics essential for critical power backup systems.

Advanced VRLA Technology and Construction

Sealed Valve-Regulated Design

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery incorporates sophisticated valve-regulated technology that recombines internally generated gases, eliminating water loss and providing maintenance-free operation throughout the battery’s service life.

Core Technical Specifications

Nominal Voltage: 12V DC with stable discharge characteristics
Rated Capacity: 7 ampere-hours at 20-hour discharge rate
Construction Type: Absorbed Glass Mat (AGM) technology for superior performance
Terminal Configuration: F2 terminals (6.35mm spade terminals) for secure connections
Operating Temperature: -15°C to +50°C for versatile environmental applications
Float Life: 3-5 years typical service life under normal operating conditions

The absorbed glass mat separator technology immobilizes the electrolyte while providing excellent charge acceptance and low internal resistance for optimal power delivery.

Superior Cycle Life and Performance

Deep Discharge Capability

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery withstands repeated deep discharge cycles while maintaining capacity and performance characteristics that exceed conventional flooded lead-acid alternatives.

Performance Characteristics

Cycle Life: 200+ cycles at 100% depth of discharge
Discharge Rate: Multiple discharge profiles from C/20 to 3C capability
Charge Efficiency: 95%+ charge acceptance for rapid recharging
Self-Discharge: Less than 3% monthly capacity loss during storage
Recovery Capability: Excellent recovery from deep discharge conditions
Temperature Compensation: Stable performance across operating temperature range

Discharge Performance Optimization

The battery maintains consistent voltage output throughout the discharge cycle, providing reliable power to connected equipment while maximizing usable capacity.

Maintenance-Free Operation and Safety Features

Spill-Proof and Position-Independent Design

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery operates safely in any position without risk of acid spillage, making it ideal for applications where conventional flooded batteries would be impractical or unsafe.

Safety and Protection Features

Sealed Construction: Prevents acid leakage and eliminates electrolyte maintenance
Valve Regulation: Automatic pressure relief prevents case rupture during overcharging
Non-Spillable Design: Safe operation in any mounting orientation
Gas Recombination: Internal oxygen and hydrogen recombination eliminates venting
Flame Arrestor: Built-in spark suppression prevents ignition of internal gases
UL Recognition: Safety certification for electrical equipment applications

Environmental Safety

The sealed design eliminates corrosive acid fumes while the recyclable construction supports environmental responsibility at end of service life.

Versatile Application Compatibility

UPS and Backup Power Systems

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery provides reliable backup power for uninterruptible power supplies that protect computers, networking equipment, and critical electronic systems during power outages.

Security and Alarm System Applications

Burglar Alarm Panels: Maintains security monitoring during power failures
Fire Alarm Systems: Ensures continuous fire detection and notification capability
Access Control Systems: Powers electronic locks and card readers during outages
CCTV Surveillance: Backup power for security cameras and recording equipment
Emergency Communication: Powers two-way radios and communication systems

Emergency Lighting and Exit Signs

Building safety systems rely on dependable battery backup to maintain illumination during evacuations while meeting code requirements for emergency egress lighting.

Charging Characteristics and System Integration

Optimized Charging Profile

The Ritar 12V 7AH Battery accepts charge efficiently through standard constant voltage charging methods while accommodating various charging algorithms used in commercial equipment.

Charging Specifications

Float Voltage: 13.6-13.8V DC for maintenance charging
Bulk Charge Voltage: 14.4-14.7V DC for rapid charging
Maximum Charge Current: 2.1 amperes for fastest charging without damage
Temperature Compensation: -3mV/°C/cell recommended for optimal charging
Charge Time: 6-8 hours for complete recharge from 100% discharge
Trickle Charge Compatible: Accepts continuous float charging without overcharge damage

Charger Compatibility

The battery works effectively with automatic battery chargers, smart chargers, and built-in charging circuits found in UPS systems and security equipment.

Physical Dimensions and Installation

Compact Form Factor Design

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery features space-efficient dimensions that fit within standard battery compartments while providing substantial power capacity for its size.

Physical Specifications

Dimensions: 151mm (L) × 65mm (W) × 94mm (H) compact footprint
Weight: 2.3 kg approximate weight for easy handling
Terminal Type: F2 spade terminals with 6.35mm tab connections
Case Material: ABS plastic housing with flame retardant properties
Carrying Handle: Integrated handle for convenient transport and installation
Mounting Options: Various mounting orientations including upright and side positioning

Installation Flexibility

The compact size and position-independent design accommodate installations in tight spaces where larger batteries would not fit.

Environmental Performance and Operating Conditions

Wide Operating Temperature Range

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery maintains reliable performance across varying environmental conditions while adapting to temperature extremes that would affect lesser battery technologies.

Environmental Specifications

Operating Temperature: -15°C to +50°C for reliable performance
Storage Temperature: -20°C to +60°C for long-term storage
Humidity Tolerance: Up to 95% relative humidity without performance degradation
Altitude Rating: Sea level to 3000 meters operational capability
Vibration Resistance: Withstands transportation and installation vibrations
Shock Resistance: Durable construction prevents damage from handling impacts

Climate Adaptability

The battery maintains capacity and performance characteristics across diverse climate conditions while the sealed construction prevents environmental contamination.

Quality Assurance and Manufacturing Standards

Rigorous Quality Control

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery undergoes comprehensive quality testing throughout manufacturing to ensure consistent performance and reliability that meets professional application requirements.

Quality Standards Compliance

ISO 9001: Quality management system certification for manufacturing excellence
CE Marking: European Conformity marking for safety and environmental compliance
UL Recognition: Underwriters Laboratories component recognition for electrical safety
IEC Standards: International Electrotechnical Commission battery performance standards
RoHS Compliance: Restriction of hazardous substances environmental certification

Testing and Validation

Each battery undergoes capacity testing, voltage verification, and leak testing before shipment to ensure optimal performance and safety compliance.

Economic Value and Total Cost of Ownership

Cost-Effective Backup Power

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery provides exceptional value through its combination of reliable performance, maintenance-free operation, and extended service life that minimizes total ownership costs.

Economic Benefits

Maintenance-Free Operation: Eliminates ongoing maintenance costs and labor requirements
Extended Service Life: 3-5 year typical life reduces replacement frequency
High Efficiency: Superior charge acceptance minimizes charging costs
Reliable Performance: Consistent power delivery prevents costly equipment downtime
Universal Compatibility: Standard sizing fits existing battery compartments without modification

Return on Investment Analysis

The reliable backup power protection typically prevents damage and downtime costs that far exceed the battery investment, providing excellent return on investment for critical applications.

Storage and Handling Guidelines

Proper Storage Practices

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery requires appropriate storage conditions to maintain performance characteristics and extend service life when not in immediate use.

Storage Requirements

Temperature Control: Store in cool, dry locations away from heat sources
Periodic Charging: Refresh charge every 6 months during extended storage
Ventilation: Adequate airflow prevents temperature buildup during storage
Physical Protection: Prevent short circuits and mechanical damage during handling
Inventory Rotation: First-in, first-out practices ensure battery freshness

Handling Safety

Standard battery handling precautions apply including proper lifting techniques and protection from short-circuit conditions during transport and installation.

Installation and Replacement Procedures

Professional Installation Guidelines

The Ritar 12V 7AH Sealed Lead Acid Rechargeable Battery installation requires attention to proper connections, ventilation, and safety procedures to ensure optimal performance and longevity.

Installation Best Practices

Proper Ventilation: Adequate airflow around battery prevents overheating
Secure Mounting: Prevents movement that could damage terminals or case
Correct Polarity: Verify positive and negative connections before energizing
Torque Specifications: Proper terminal tightening prevents loose connections
System Integration: Verify compatibility with existing charging and monitoring systems

Replacement Considerations

Direct replacement capability in most applications eliminates system reconfiguration while improved performance characteristics may extend replacement intervals.

Technical Support and Warranty Coverage

Comprehensive Support Services

The Ritar 12V 7AH Battery includes access to technical support resources that assist with application guidance, troubleshooting, and performance optimization.

Support and Warranty

Technical Documentation: Complete specifications and application guidelines
Application Support: Expert guidance for proper battery selection and sizing
Troubleshooting Assistance: Professional support for performance issues
Warranty Coverage: Comprehensive protection against manufacturing defects
Replacement Availability: Consistent product availability for ongoing maintenance
