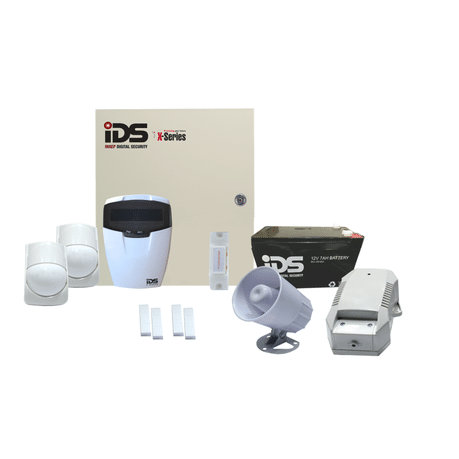

IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones

IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones delivers professional-grade security system control with flexible expansion capabilities for growing security requirements. This versatile control panel combines reliable intrusion detection with comprehensive system management features, making it suitable for applications ranging from residential security to complex commercial installations requiring extensive zone coverage.

Technical Specifications and System Architecture

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones incorporates advanced microprocessor control technology designed for professional security applications:

• Base Zone Capacity: 8 hardwired zones with built-in end-of-line resistor monitoring
• Maximum Expansion: Up to 64 zones through modular expansion modules
• Panel Memory: 1000 event log capacity with time and date stamping
• User Codes: 48 programmable user codes with individual access levels
• Communication Options: Telephone line interface with backup cellular compatibility
• Power Requirements: 12V DC operation with integrated battery backup charging
• Battery Backup: Supports 7Ah sealed lead-acid battery for extended power outage operation
• Operating Temperature: -10°C to +50°C for diverse installation environments
• Humidity Tolerance: 5% to 95% non-condensing for reliable operation
• Panel Dimensions: 280mm x 220mm x 80mm metal enclosure
• Zone Response Time: <300ms for rapid intrusion detection and response
• Programming Interface: LCD keypad with intuitive menu navigation system

The distributed processing architecture ensures reliable operation while the modular expansion design accommodates future security system growth without requiring complete panel replacement.

Security Zone Configuration and Detection Capabilities

Zone Type Programming and Functionality

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones supports comprehensive zone programming for diverse security applications:

Entry/Exit Zones: Programmable entry and exit delays accommodate normal building access while providing security coverage. Delay periods range from 10 seconds to 4 minutes for various access requirements.

Instant Zones: Immediate alarm activation for perimeter protection including windows, skylights, and emergency exits requiring instant response to unauthorized access attempts.

Interior Zones: Motion detector integration with automatic bypass capability when system is partially armed for occupied building security during business hours.

24-Hour Zones: Continuous monitoring for fire detection, panic buttons, and tamper switches regardless of system arm status for comprehensive facility protection.

Follower Zones: Advanced logic enables sophisticated detection patterns for airlock entries and sequential access control in high-security applications.

Expansion Module Integration

Systematic expansion capabilities support growing security requirements:

Zone Expansion Modules: Additional 8-zone modules connect via data bus communication, maintaining full supervision and programming capability across all connected zones.

Wireless Integration: Compatible wireless receivers enable integration of wireless detectors and devices while maintaining the reliability of hardwired zone monitoring.

Output Expansion: Relay output modules provide additional control capability for lighting, access control, and building automation integration.

Communication Expansion: Additional communication modules support multiple monitoring station connections and advanced notification capabilities.

Professional Installation and Configuration

Installation Planning and Site Preparation

Successful deployment of the IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones requires systematic planning:

Location Selection: Install control panel in protected area with adequate ventilation, temperature control, and restricted access to prevent tampering and ensure reliable operation.

Power Infrastructure: Ensure adequate AC power supply with proper grounding and surge protection. Install appropriate battery backup capacity based on expected power outage duration requirements.

Communication Planning: Verify telephone line availability and quality for monitoring station communication. Plan backup communication methods for critical applications requiring redundant reporting.

Zone Planning: Map detector locations and wiring routes before installation. Consider future expansion requirements when planning conduit runs and junction box locations.

Wiring Standards and Connection Procedures

Professional installation practices ensure optimal system performance:

Zone Wiring: Use appropriate gauge wire (typically 22 AWG) for zone connections with proper end-of-line resistor placement for supervision and tamper detection.

Power Distribution: Install dedicated AC circuit for panel power supply with appropriate circuit protection and compliance with local electrical codes.

Communication Wiring: Use high-quality telephone cable with proper grounding and surge protection for reliable monitoring station communication.

Expansion Wiring: Plan data bus wiring for future expansion modules using appropriate cable types and maintaining proper cable length limitations.

Advanced Programming and User Management

System Programming Capabilities

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones offers comprehensive programming options:

Zone Configuration: Individual zone programming includes response type, delay settings, bypass capability, and alarm verification options for customized security coverage.

User Management: Multiple user codes with individual access levels enable role-based system control for facilities with varying security clearance requirements.

Scheduling Functions: Time-based automation enables automatic system arming/disarming for business applications with predictable access patterns.

Communication Programming: Multiple phone numbers, account codes, and reporting formats accommodate various monitoring station requirements and backup communication methods.

Integration with Building Systems

Professional security installations benefit from system integration capabilities:

Access Control Interface: Integration with card readers and electronic locks provides comprehensive entry control coordinated with intrusion detection systems.

Fire Alarm Coordination: Interface with fire detection systems enables coordinated response and prevents conflicting system actions during emergency situations.

Building Automation: Integration with HVAC and lighting systems enables energy savings and enhanced security through coordinated system operation.

Video Surveillance: Coordination with CCTV systems provides visual verification of alarm conditions and enhanced incident documentation capabilities.

Monitoring and Communication Features

Central Station Monitoring Integration

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones supports professional monitoring services:

Contact ID Protocol: Industry-standard communication protocol ensures compatibility with major monitoring stations and provides detailed event reporting capability.

Dual Communication Paths: Primary telephone line communication with backup cellular or internet communication provides redundant reporting for critical applications.

Event Prioritization: Intelligent event reporting ensures critical alarms receive priority transmission while routine events are batched for efficient communication.

Test Reporting: Automatic periodic test signals verify communication path integrity and monitoring station connectivity for reliable alarm transmission.

Local Notification and Control

On-site notification and control capabilities enhance security effectiveness:

Keypad Interface: Multiple keypad locations provide convenient system control and status indication throughout protected premises.

Sounder Control: Programmable siren outputs with timing and pattern control provide appropriate alarm notification for different event types.

Status Indication: LED indicators and display messages provide clear system status information for users and service technicians.

Local Programming: On-site programming capability enables system modifications without requiring monitoring station intervention or specialized equipment.

Maintenance and Service Procedures

Preventive Maintenance Protocols

Regular maintenance ensures continued reliable operation:

Battery Testing: Quarterly battery voltage and load testing verifies backup power capability and identifies batteries requiring replacement before failure.

Communication Testing: Monthly communication path testing ensures reliable connection to monitoring stations and identifies line quality issues.

Detector Testing: Annual testing of all connected detectors verifies proper operation and identifies devices requiring cleaning or replacement.

System Backup: Regular programming backup ensures rapid system restoration in case of panel failure or corruption.

Troubleshooting and Diagnostic Capabilities

Built-in diagnostic features simplify service procedures:

Event Log Analysis: Comprehensive event logging enables analysis of system behavior and identification of intermittent problems or user training issues.

Zone Testing: Individual zone testing capability enables rapid identification of wiring problems or detector failures during service calls.

Communication Diagnostics: Built-in line testing and signal strength monitoring assist with communication problem diagnosis and resolution.

System Health Monitoring: Automatic monitoring of power supply, battery condition, and communication status provides early warning of potential system problems.

Application Scenarios and Market Segments

Commercial Security Applications

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones serves diverse commercial security requirements:

Retail Environments: Multi-zone coverage for sales floors, storage areas, and cash handling locations with integration to point-of-sale systems and access control.

Office Buildings: Comprehensive perimeter and interior protection with scheduling capabilities for normal business operations and after-hours security coverage.

Industrial Facilities: Extensive zone capacity accommodates large facilities with complex security requirements and integration with process control systems.

Educational Institutions: Campus-wide security coverage with multiple user access levels for administrators, security personnel, and maintenance staff.

Residential Security Systems

High-end residential applications benefit from commercial-grade capabilities:

Large Residences: Extensive zone capacity accommodates comprehensive coverage of large homes with multiple buildings and extensive grounds.

Estate Security: Integration with gate controls, perimeter detection, and surveillance systems provides comprehensive property protection.

Multi-Family Applications: Individual zone assignment enables tenant-specific security control while maintaining central monitoring and management capability.

Home Automation: Integration with lighting, HVAC, and communication systems provides enhanced convenience and energy management capabilities.

Compliance and Certification Standards

Industry Standards and Approvals

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones meets rigorous industry requirements:

UL Listing: Underwriters Laboratories certification ensures compliance with safety and performance standards for commercial and residential security applications.

FCC Approval: Federal Communications Commission approval for communication capabilities ensures compliance with telecommunications regulations.

Insurance Compliance: Meets requirements for insurance premium discounts and commercial insurance policy compliance for businesses requiring certified security systems.

International Standards: CE marking and international certifications enable global deployment and compliance with regional security equipment requirements.

Quality Assurance and Testing

Manufacturing quality control ensures consistent performance:

Factory Testing: Each panel undergoes comprehensive electrical and functional testing before shipment to verify compliance with specifications.

Environmental Testing: Temperature, humidity, and vibration testing confirms reliable operation across specified environmental conditions.

EMI/RFI Testing: Electromagnetic interference testing ensures reliable operation in electrically noisy environments and compliance with emission standards.

Long-Term Reliability: Accelerated aging tests and field reliability data confirm expected service life and maintenance requirements.

Economic Analysis and Return on Investment

Cost-Effectiveness Evaluation

Investment analysis of the IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones implementation:

• Scalable Investment: Base 8-zone capacity with expansion capability enables phased implementation matching budget and security requirements
• Professional Grade: Commercial-quality components reduce maintenance costs and extend service life compared to residential-grade alternatives
• Integration Capability: System integration features reduce overall security system costs through consolidated equipment and installation
• Insurance Benefits: Professional-grade certification may qualify for insurance premium reductions and improved coverage terms

Total System Cost Analysis

Comprehensive cost considerations for professional installations:

Installation Efficiency: Professional-grade features and documentation reduce installation time and training requirements for qualified technicians.

Maintenance Optimization: Diagnostic capabilities and reliable components reduce service call frequency and maintenance costs over system lifetime.

Expansion Value: Modular expansion capability protects initial investment while accommodating future security requirement changes without complete system replacement.

Monitoring Compatibility: Industry-standard communication protocols ensure competitive monitoring service options and avoid proprietary service lock-in.

Technical Support and Training Resources

Professional Support Structure

Comprehensive support ensures successful installation and operation:

Technical Documentation: Complete installation and programming manuals provide detailed guidance for professional installers and service technicians.

Training Programs: Manufacturer training courses and certification programs ensure proper installation and service procedures for optimal system performance.

Technical Support: Dedicated technical support hotline provides installation assistance and troubleshooting guidance for complex applications and system integration.

Software Tools: Programming software and diagnostic tools simplify system configuration and maintenance procedures for professional installers.

Warranty and Service Considerations

Professional warranty structure supports commercial applications:

Product Warranty: Comprehensive warranty coverage protects against manufacturing defects and provides replacement assurance for critical security applications.

Extended Warranty: Optional extended warranty programs provide additional protection for long-term installations and budget planning certainty.

Service Network: Authorized service provider network ensures local support availability and maintains manufacturer certification standards.

Parts Availability: Long-term parts availability commitment ensures continued service capability throughout expected system service life.

The IDS X64 – 8 Zone Alarm Panel Expandable to 64 Zones delivers professional-grade security system control with flexible expansion capabilities, comprehensive programming features, and reliable monitoring integration for commercial and high-end residential security applications requiring scalable intrusion detection and system management.
