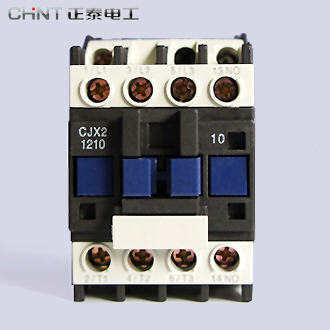

Chint 3pole 25amp Contactor proftech

Chint 3pole 25amp Contactor, is a din rail mount 25 amp contactor manufactured by Chint. This contactor has 3 main poles and 1 normally open auxiliary pole. This Chint contactor is also available with either a 24, 48, 110, 230 or 415 volt coils. Compatible with the Chint Overloads, Auxiliary add on blocks, Pneumatic Timers and Mechanical Interlocks.

• AC Contactor is suitable for long-distance making and breaking circuit, frequently starting and controlling the AC motors. Coil Rated Voltage is AC 220V,

Chint Contactors are suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.

• Certificates: CE, KEMA, VDE, EK, ESC, UKrSEPRO, GOST, RCC, UL
• Electric ratings: AC50/60Hz, 690V, up to 95A
• Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC contactor
• Utilization category: AC-3, AC-4
• Altitude: 2000m
• Ambient temperature: -5- +40
• Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°
• Standard: IEC/EN 60947-4-1
