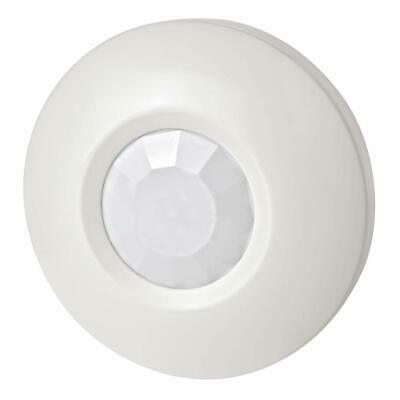

Texecom Premier 360QD ceiling mount PIR proftech

Advanced digital design ensures maximum false alarm immunity in all environmental conditions, yet still maintains optimum catch performance.

360QD Ceiling Mount PIR Features;

• Make: Texecom
• Model code: Premier 360QD
• Dual/ Quad Technology: Quad Technology Detectors
• Coverage/ Range m: 11 m coverage
• Quad Element Sensor: Yes


  360QD Ceiling Mount PIR Specification;

  • Protection Area:7.0m (23ft) diameter when mounted at 2.4m (8ft)
  • 10.5m (35ft) diameter when mounted at 3.6m (12ft)
  • Supply Voltage: 9 – 16VDC
  • Current Consumption: 16mA typical at 12VDC
  • Alarm Signaling: Built-in normally closed relay
  • Alarm Relay: Rated at 24VDC, 50mA protected by 18Ω series resistor
  • EMC: Independently certified to EN 50130-4 : 1996
  • RF Immunity: No false alarms from 80MHz to 1GHz at 70V/m
