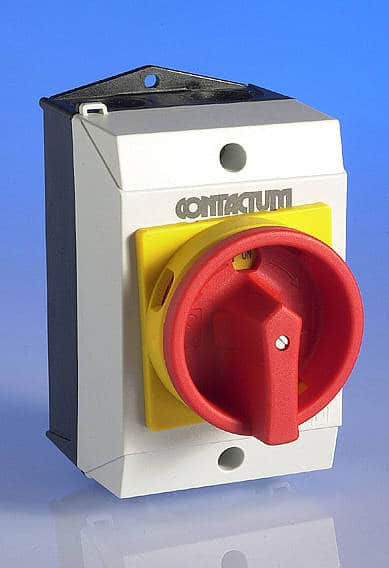

63 Amp TP&N Rotary Switch Isolator Weatherproof – IP65
Original price was: KSh5,000.00.KSh4,000.00Current price is: KSh4,000.00.
Description
63 Amp TP&N Rotary Switch Isolator Weatherproof – IP65
63 Amp TP&N Rotary Switch Isolator Weatherproof – IP65, are presented in robust flame retardant enclosures for surface mounting. With an IP65 rating and plenty of space inside for ease of installation they are suitable for the majority of applications. 63 amp 3 pole rotary isolator switch.
- Surface Mount
- Solid plastic Enclosure with 25mm cable entry knockouts
- Weatherproof rated to IP65 – waterproof rating
- Rotary handle is padlockable in the ‘Off’ positions
- AC21-63A / AC23A-22kW (415 volt)
- Dimensions: (H)175 x (W)115 x (D)115mm
- Standards: EN60947 and CE marked
Features
- Removable gland plates top & bottom on switch fuses
- Cable entry knockouts on switches
- Fully rated AC23 on load switch disconnection
- Interlocked handles are pad lockable (up to three locks).
- To BS EN 60947-3.
- Solid Neutral.
- Light Grey finish.
specification
Current Rating |
63A |
Depth |
66 mm |
Height |
85 mm |
Width |
52.5 mm |
Guarantee |
10 Years |
Incoming Terminal Capacity |
50mm2 |
Mounting |
Din Rail |
Number of Modules |
3 |
Packaging Types |
Each |
Product Range |
Contactor & Isolators |
Standards |
BS EN 60947 |
Weight |
0.33 kg |
Utilisation Category |
AC22B |
Incomer Terminal Capacity |
50mm2 |
Enclosure |
Thermoset Urea |
Frequency |
50HZ |
Breaking Capacity |
2kA for 1 Sec |
Lockable |
Yes with DLPX1/P |
Rated Operating Voltage |
230/400V ac. |
Protection Class IP Rating |
IP2X |
Terminal Tightening Torque |
2 – 2.5Nm |
Short Circuit Making Capacity |
2kA for 1 Sec |
Terminal Type |
Cage Clamp |
Number Of Poles |
Three Pole |
Cable Clamp |
Square Cage Clamp |
